Reduces analysis time, effort, and cost

PASS/START-PROF is an ideal component for integration into any piping design workflow.

START CODES

Smart Simulation & Sizing Tools for Every Piping and Equipment Engineer/Designer

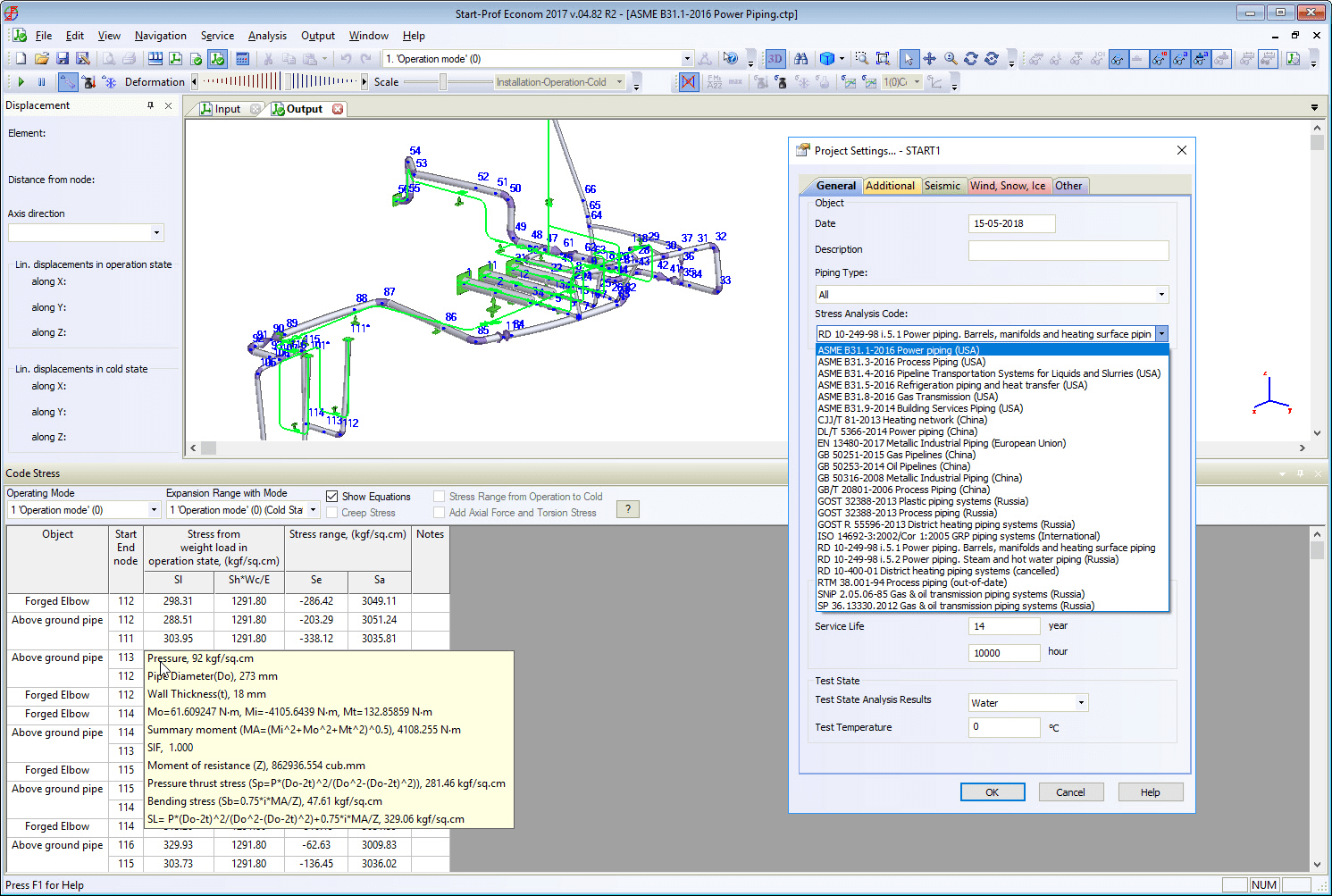

  • The following codes are implemented into Start-Prof software:

    Power Piping
    • ASME B31.1-2020 Power piping (USA)
    • DLT 5366-2014 Steam/Water Piping in Power Plant (China)
    • RD 10-249-98 Steam and hot water piping (Russia)
    Central Heating
    • CJJ/T 81-2013 Buried hot-water heating pipelines (China)
    • GOST R 55596-2013 District Heating Networks (Russia)
    • RD 10-400-01 District Heating Networks (Russia)
    • EN 13941-2019 District heating pipes (European Union)
    Process Piping
    • ASME B31.3-2018 + Ch. IX Process Piping (USA)
    • EN 13480-2017 Metallic Industrial Piping (European Union)
    • GB/T 20801-2020 Process Piping (China)
    • GB 50316-2008 Metallic Industrial Piping (China)
    • GOST 32388-2013 Process Piping (Russia)
    • RTM 38.001-94 Process Piping (Russia)
    Gas & Oil
    • ASME B31.4-2019 + Ch. IX & XI Liquid Transportation (USA)
    • ASME B31.8-2018 + Ch. VIII Gas Transmission (USA)
    • ASME B31.12-2019 Hydrogen Piping and Pipelines (USA)
    • BS PD 8010-1,2:2015 Pipeline systems (UK)
    • CSA Z662 + Ch.11 Oil and gas pipeline systems (Canada)
    • GB 50251-2015 Gas Pipelines (China)
    • GB 50253-2014 Oil Pipelines (China)
    • SNiP 2.05.06-85 Gas and Oil Pipelines (Russia)
    • SP 36.13330.2012 Gas and Oil Pipelines (Russia)
    • GOST R 55989-2014 Gas and Oil Transmission Pipelines for Pressure Greater 10 MPa (Russia)
    • GOST R 55990-2014 Field pipelines (Russia)
    • SP 284.1325800.2016 Field pipelines (Russia)
    Fiberglass Piping
    • ISO 14692-3:2002/Cor 1:2005 (International)
    • ISO 14692-2017 (International)
    Plastic Piping (PE, PE-RT, PP, PB, PVC, PVDF etc.)
    • GOST 32388-2013 (Russia)
    Other Piping
    • ASME B31.5-2019 Refrigeration piping and heat transfer (USA)
    • ASME B31.9-2017 Building Services Piping (USA)
    • SP 33.13330.2012 Steel Pipelines (Russia)
    SIF and flexibility factors
    • ASME B31J-2017 Stress Intensification and Flexibility Factors
    Equipment Loads Check
    • API 610 11th Edition, Centrifugal Pumps (USA)
    • WRC 537 Local stresses in spherical and cylindrical shells due to external loadings
    • API 617 8th Edition. Axial and Centrifugal Compressors and Expander-compressors
    • API 560 5th Edition. Fired Heaters for General Refinery Service
    • API 661 7th Edition. Petroleum, Petrochemical, and Natural Gas Industries—Air-cooled Heat Exchangers
    • API 650 12th Edition. Welded Tanks for Oil Storage
    • EN ISO 9905:1998+A1:2011 Technical specifications for centrifugal pumps — Class I
    • EN ISO 5199:2002 Technical specifications for centrifugal pumps — Class II
    • NEMA SM23 R2002 Steam Turbines for Mechanical Drive Service
    • GOST 32601-2013, Centrifugal Pumps (Russia)
    Nozzle Flexibility
    • WRC 297 Local Stresses in Cylindrical Shells Due to External Loadings on Nozzles
    1. PD 5500:2018 Specification for Unfired Fusion Welded Pressure Vessels

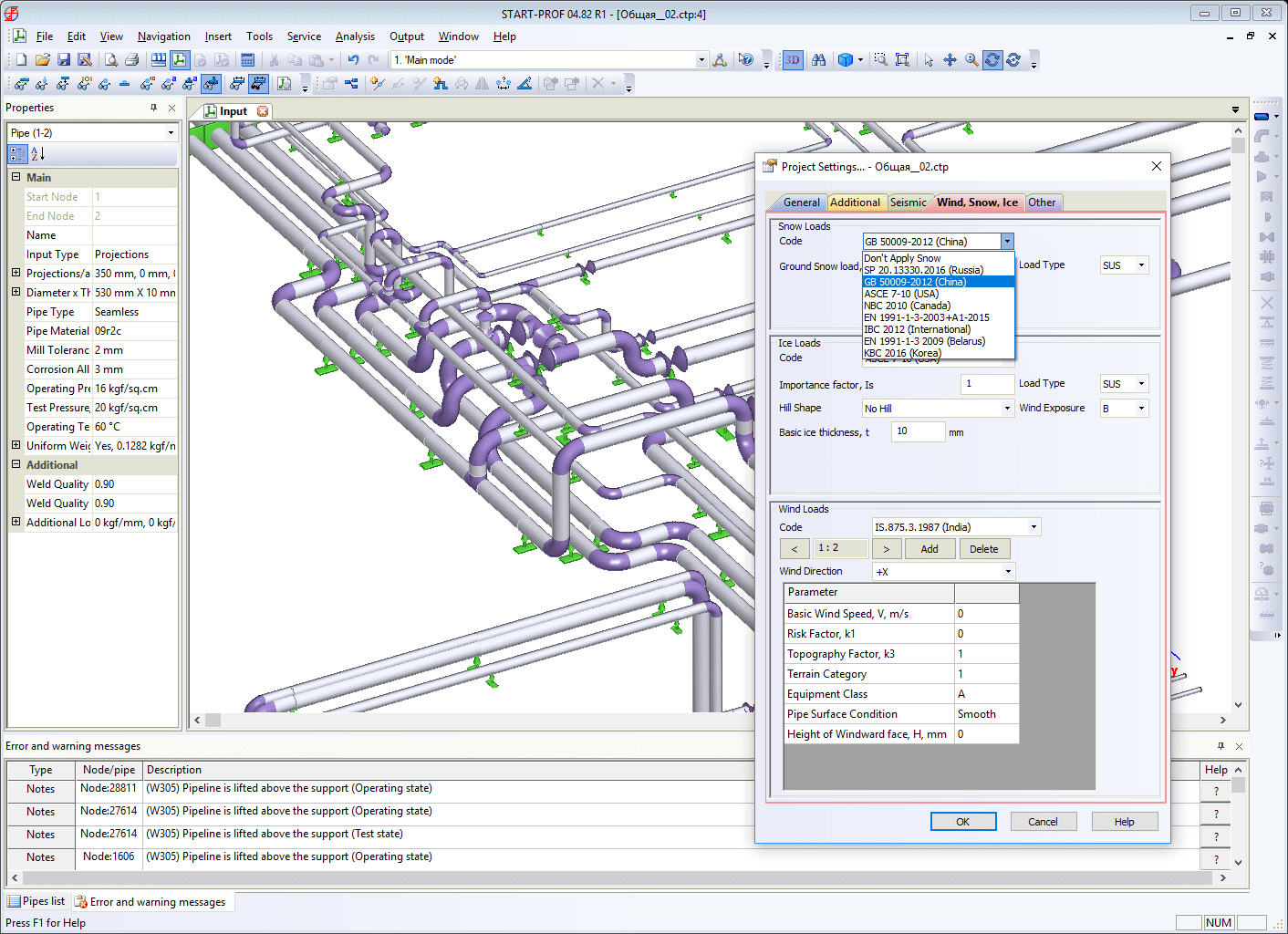

Snow Loads
  • ASCE 7-16 (USA)
  • EN 1991-1-3-2003+A1-2015 (European Union)
  • NBC 2010 (Canada)
  • GB 50009-2012 (China)
  • KBC 2016 (Korea)
  • SP 20.13330.2016 (Russia)

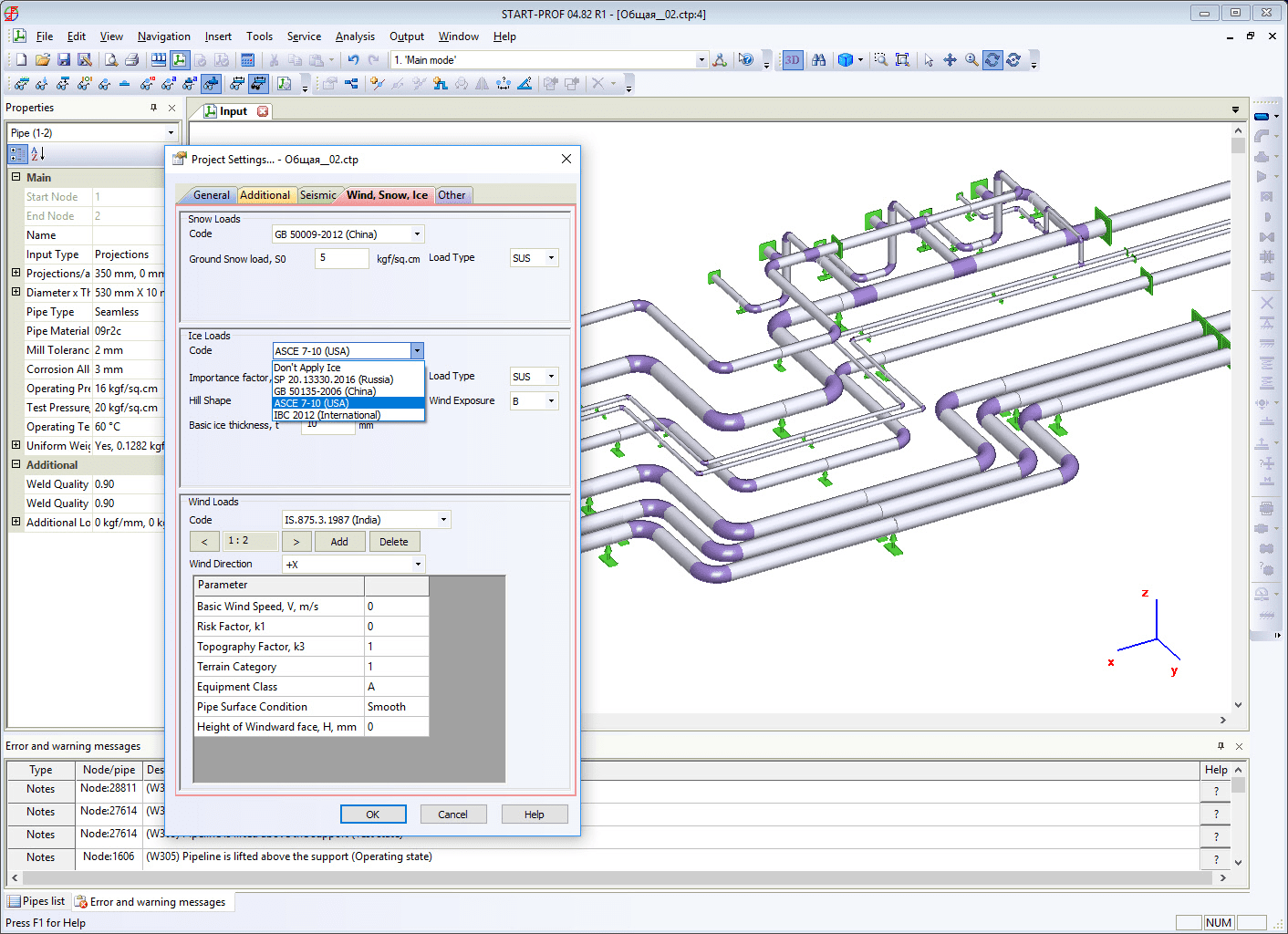

Ice Loads
  • ASCE 7-16 (USA)
  • GB 50135-2006 (China)
  • SP 20.13330.2016 (Russia)
Fitness for Service
  • ASME B31G-2012 (USA)
  • GB/T 19624-2019 (China)

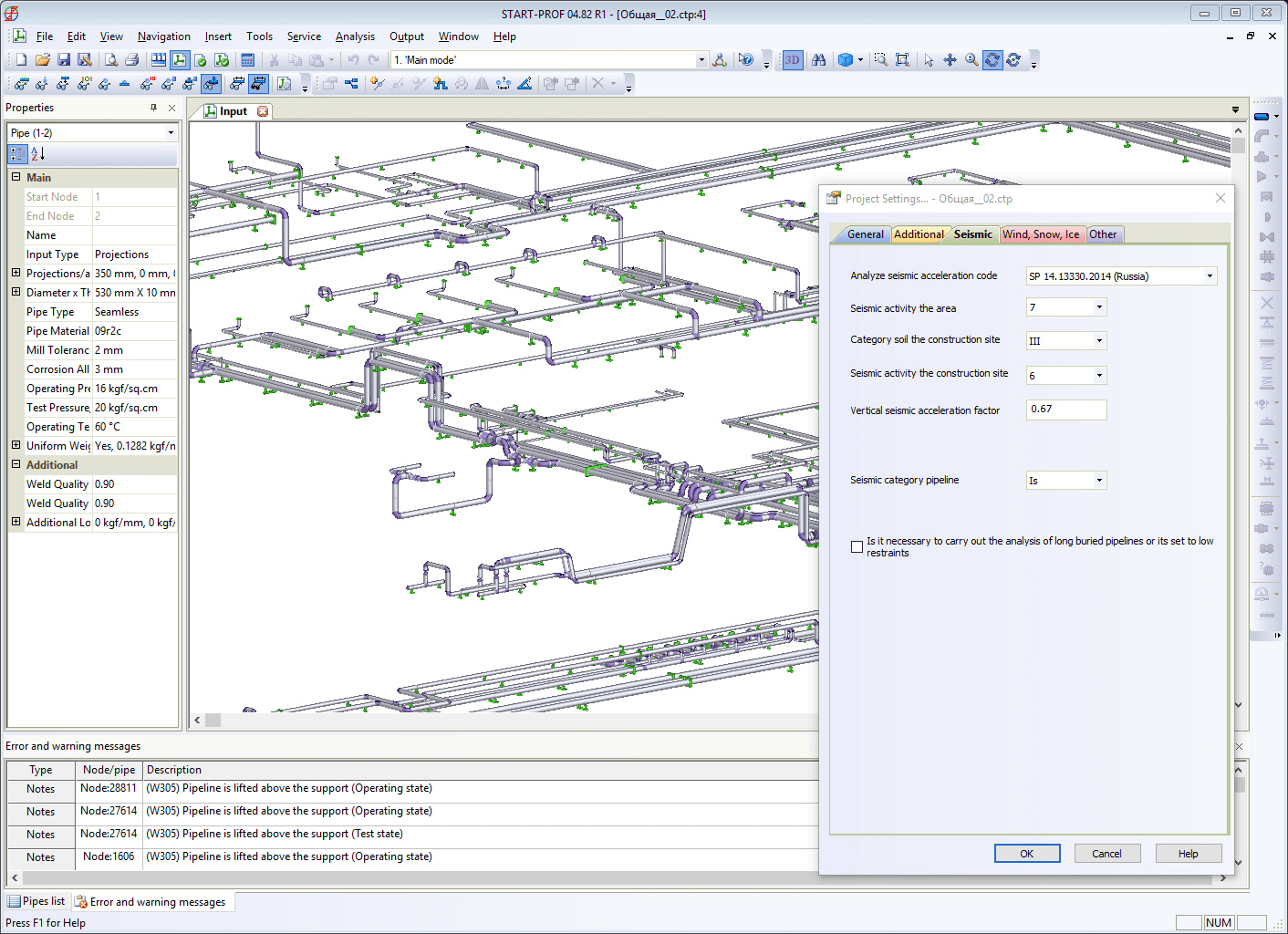

Seismic Loads
  • GB 50011-2010 (China)
  • SNiP II-7-81* (Russia)
  • SP 14.13330.2018 Addenda #1 (Russia)
  • NP-031-01 (Russia)

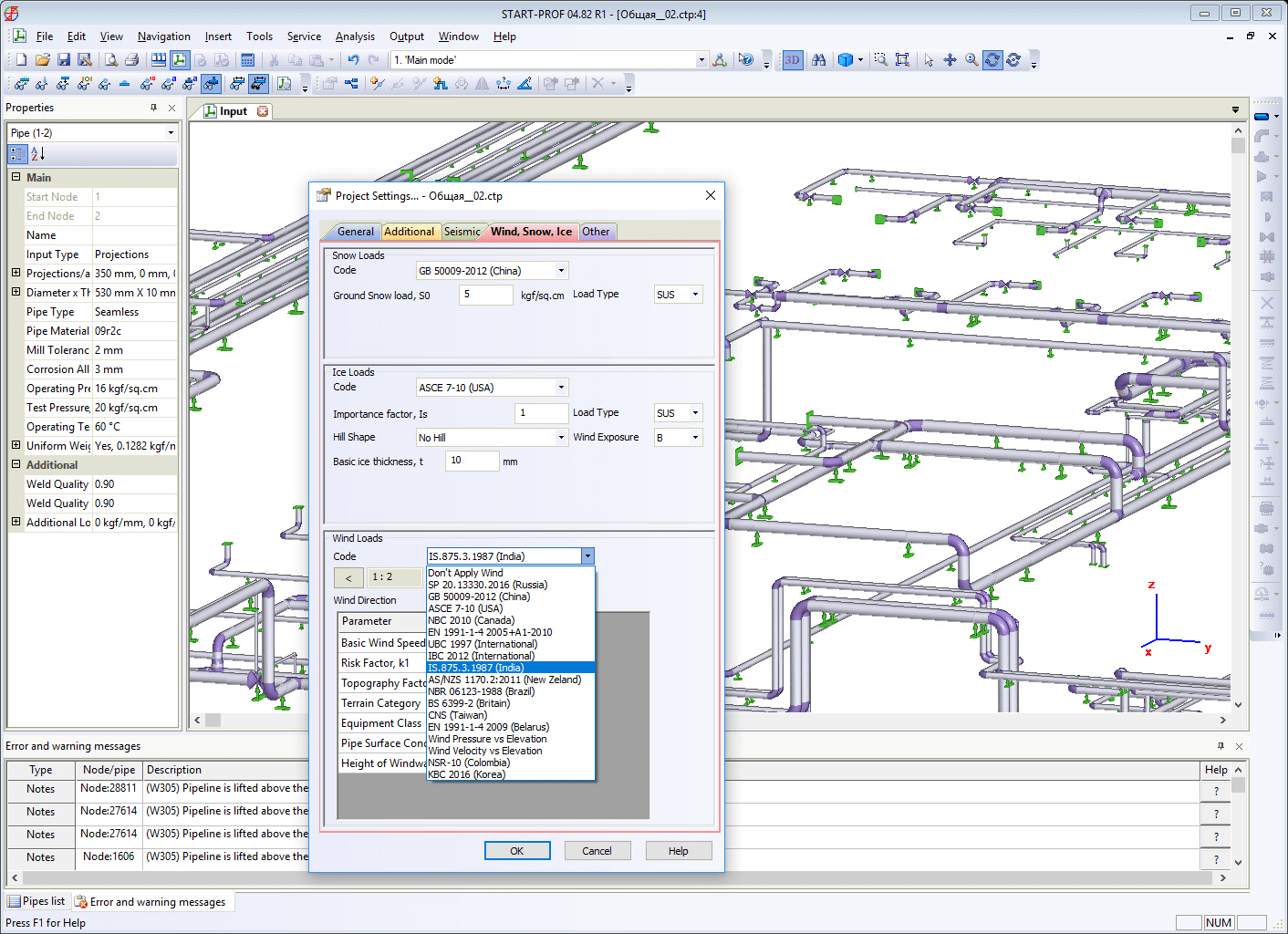

WIND LOADS​
  • UBC 1997
  • IBC 2012
  • ASCE 7-16 (USA)
  • BS 6399-2 (Britain)
  • EN 1991-1-4 2005+A1-2010 (European Union)
  • NBC 2010 (Canada)
  • GB 50009-2012 (China)
  • IS.875.3.1987 (India)
  • AZ/NZS 1170.2:2011 (New Zeland)
  • NBR 06123-1988 (Brazil)
  • CNS (Taiwan)
  • NSR-10 (Colombia)
  • KBC 2016 (Korea)
  • CFE 2008 (Mexico)
  • SP 20.13330.2016 (Russia)
  • Wind Pressure vs Elevation
  • Wind Velocity vs Elevation
  • UBC 1997
  • IBC 2012
  • ASCE 7-16 (USA)
  • BS 6399-2 (Britain)
  • EN 1991-1-4 2005+A1-2010 (European Union)
  • NBC 2010 (Canada)
  • GB 50009-2012 (China)
  • IS.875.3.1987 (India)
  • AZ/NZS 1170.2:2011 (New Zeland)
  • NBR 06123-1988 (Brazil)
  • CNS (Taiwan)
  • NSR-10 (Colombia)
  • KBC 2016 (Korea)
  • CFE 2008 (Mexico)
  • SP 20.13330.2016 (Russia)
  • Wind Pressure vs Elevation
  • Wind Velocity vs Elevation
