ANALYTIX CAM
​​MECHANISM-KINEMATICS

Cam Types

  • Plate -- oscillating roller follower
  • Plate -- oscillating flat-face follower
  • Plate -- reciprocating roller follower
  • Plate -- reciprocating flat-face follower
  • Linear -- oscillating roller follower
  • Linear -- reciprocating roller follower

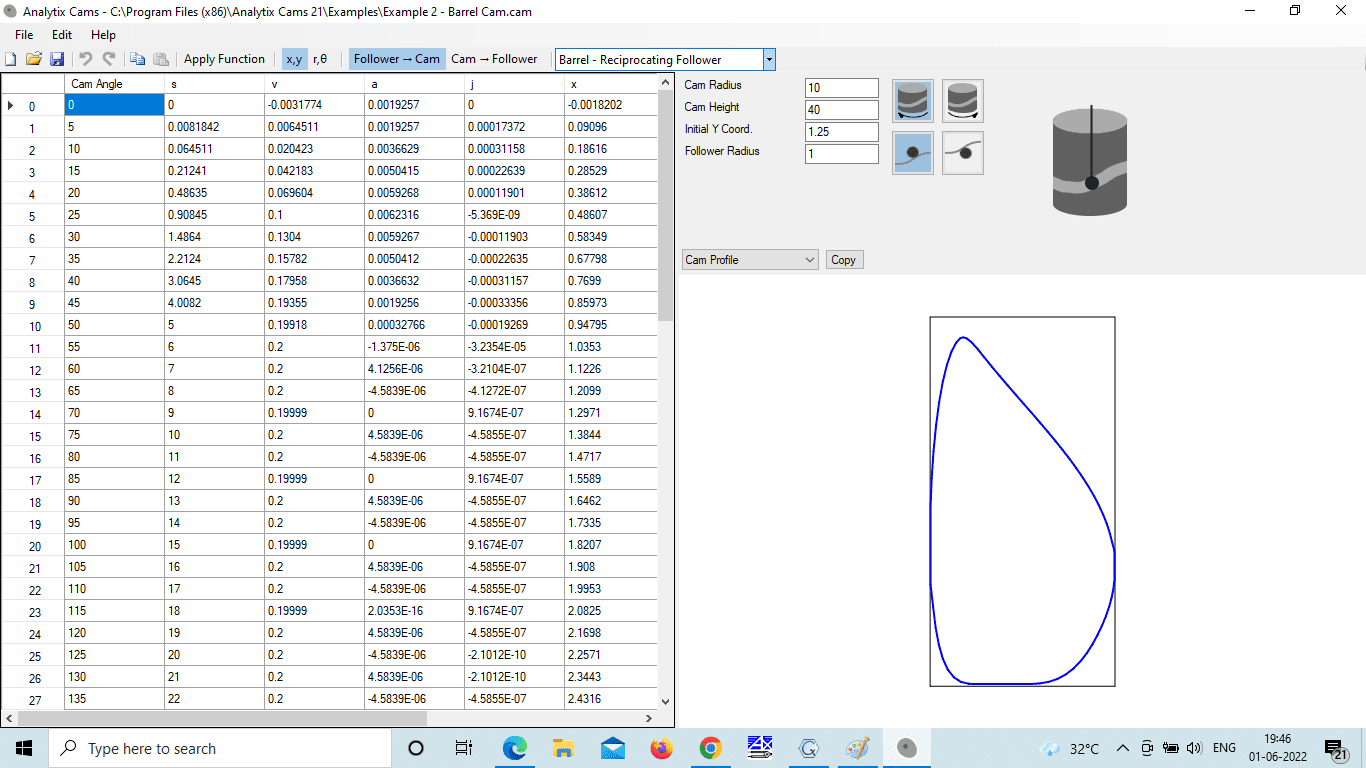

  • Barrel -- oscillating roller follower
  • Barrel -- reciprocating roller follower

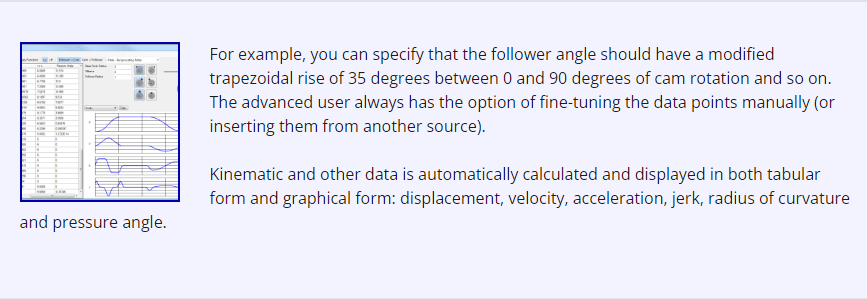

NUMERIC GRAPH
Numeric tables and graphs

  • Cam profile (x-y or r-theta)
  • Displacement
  • Velocity
  • Acceleration
  • Jerk
  • S-V-A-J
  • Pressure angle
  • Radius of curvature

USAGE
Usage

  • Follower-to-cam method? YES
  • Cam-to-follower method? YES

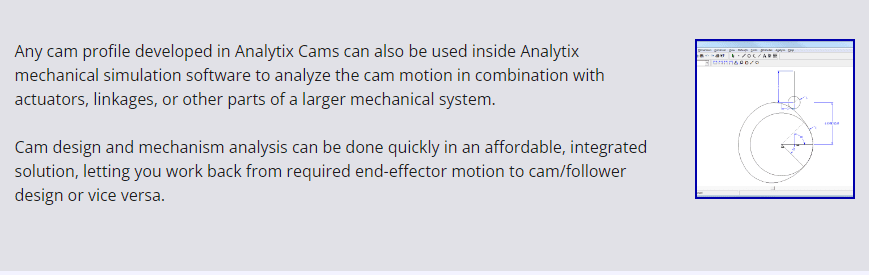

  • Simulate inside larger mechanism (YES, with Analytix)

GEOMETRY OPTION
Geometry options

  • Clockwise/counter-clockwise
  • Left/Right
  • Base circle radius/angle
  • Initial angle
  • Follower arm length
  • Pivot-Pivot Distance/Coordinates
  • Offset dimension-left/right
  • Follower above/below
  • Barrel radius
  • Follower radius

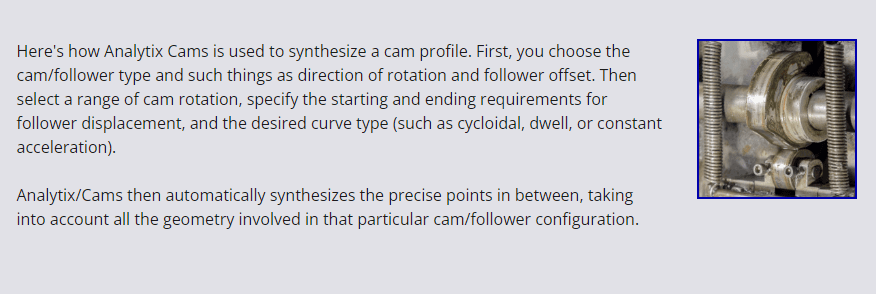

MOTION SYNTHESIS
Motion Synthesis Functions

  • Dwell
  • Constant velocity/acceleration
  • Cycloidal
  • Modified Harmonic
  • Modified Trapezoid
  • Modified Sine
  • 345-Polynomial
  • 4567-Polynomial

ANALYTIX CAM

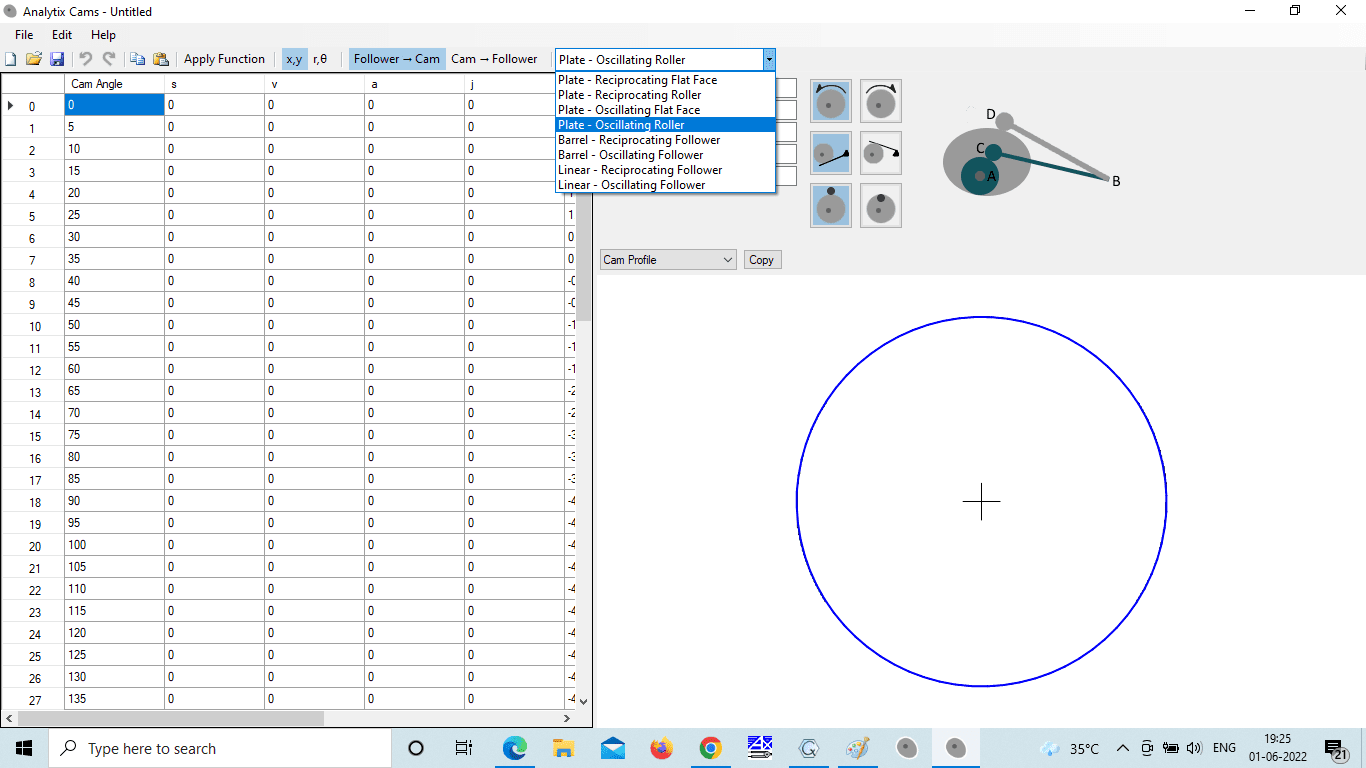

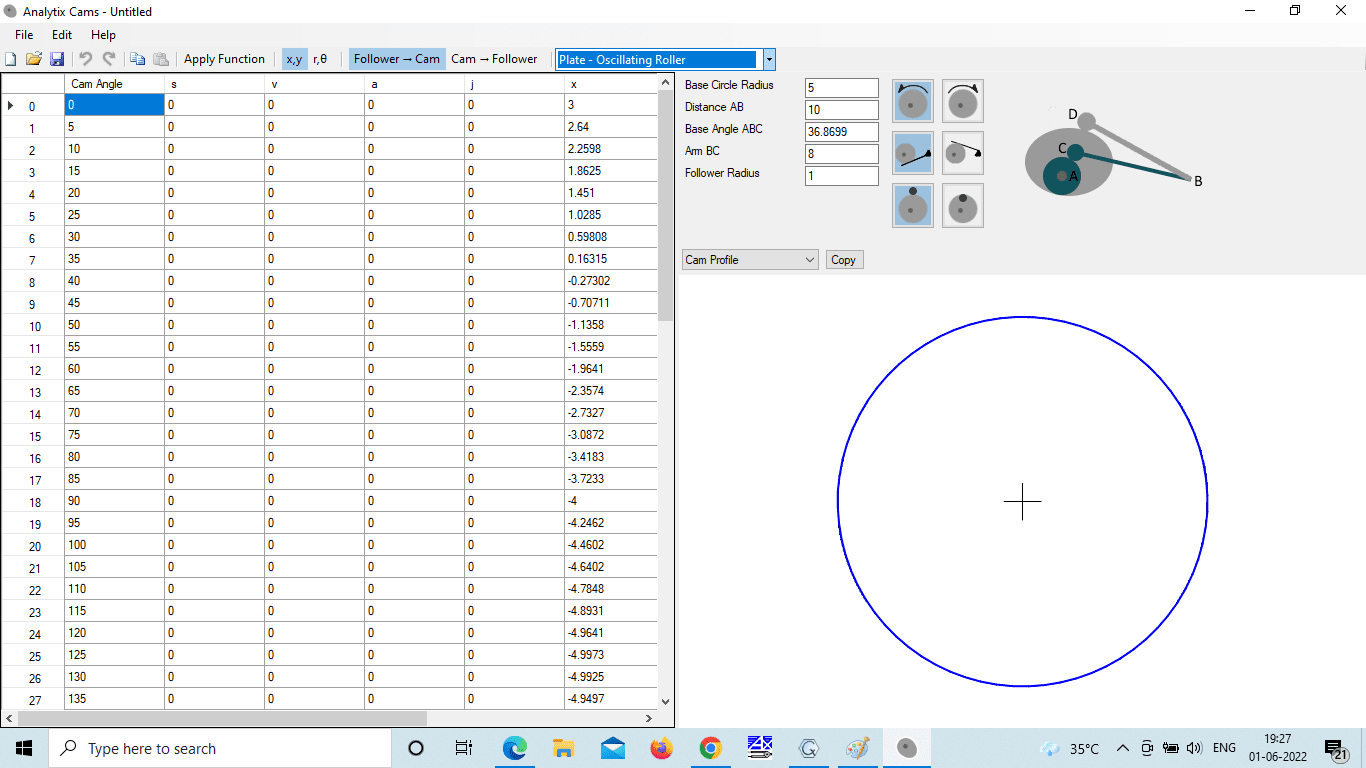

ANALYTIX CAM MODELING WINDOW

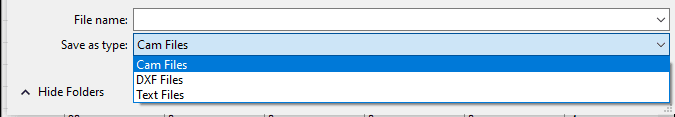

Analytix Cams enables mechanical engineers to quickly synthesize a cam profile given their follower motion requirements. Or...from an existing cam profile, the follower's geometry and kinematics can be quickly designed, fine-tuned and analyzed. With Analytix simulation software, you can optimize the cam/follower interaction with your mechanical system. Then export DXF to CAD or coordinate data to NC/CAM software.
