MATHEMATICS
​APPLICATION ANALYTIX MECHANISM

Women Graduates are trained with basics in Industry application from basic science Mathematics, Physics, Chemistry

Training in application Software by Industry Professional, to train others with preparation as TRAINER to empower.

Empowering areas are ACADEMIC SERVICE-ENTREPRENEURSHIP-DESIGN SERVICE-INDUSTRIES-SOCIAL ENGINEERING

Women graduate are given training for the selected department in application software for 3 months to become TRAINER
While training, Trainee has to prepare Training material as per LMS, Stipend will be provided on completion of  assigned
First year to Final year Women graduate also given training for the selected department in application software, Stipend will be provided on completion of  assigned as per year. CERTIFICATE will be provided to become a TRAINER in LMS

AIM of this training is to get employment directly or indirectly from Industries, Government organization either state or central bodies. Also to develop or support rural industries & other application industries either as induvial or self group

New Features

Improved features of Analytix 21 include:

Resizable dialog boxes
Multi level Undo/Redo
Real time animation
Toolbar
Recent file menu

Additional features in Analytix 21 version 1.1:

Improved calculator performance
Annotation alignment
Variables accepted for mass
Iteration embedded in table / graph or DDE
Named levels

Technical Specifications

Parametric Sketching-2D
  • Patented Variational Geometry engine, with auto-dimensioning
Mechanical Model Inputs
  • Distance and angle values, velocities, and accelerations
  • Tolerances on input distances and angles
  • Applied forces and moments, springs, dampers, actuators
  • Masses and moments of inertia
Mechanical Model Outputs
  • Geometric position, velocity, acceleration
  • Reaction forces
  • Shear force and bending moments
  • Stress and deflection in trusses
  • Tolerance stack-up, sensitivity, trace, zones, absolute or statistical

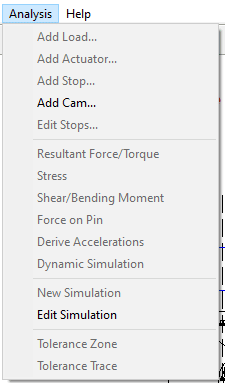

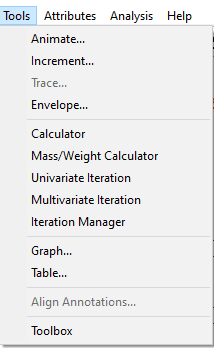

Simulation and Analysis Tools
  • Animation, point trace, envelope
  • Equation calculator and iterative equation solver
  • Graphs and tables of output parameters
Data Exchange
  • DXF input and output
  • Windows Dynamic Data Exchange (DDE), Cut & Paste
Units
  • SI
  • fps
  • ips
  • user-defined unit systems
ANALYTIX
